AB01B
ATON
Availability: | |
---|---|
LED expected lifetime | 5H | ||
Lightsource | 32pcs * 0.5W R+32pcs * 0.5W G+32pcs * 0.5W B +32pcs * 0.5W M+32pcs * 0.5W A | ||
Battery working time @ full light | 5H | ||
Battery working time @ auto | 6.5H | ||
Battery charging time | 2.5H | ||
Color calibration | 0-255 | ||
Dimming curve | Linear/Square Law 1/Square Law 2/Square Law 3 | ||
Dimming | 0-255% | ||
LED panel | 32*0.5W R+32*0.5W G+32*0.5W B+32*0.5W M+32*0.5W A | ||
Strobe | 0-20Hz adjustable | ||
Tilt locking system | NO | ||
Segment control | 8 segments | ||
Screen Type | LCD | ||
Efficacy | 9 lm/W | ||
Light output all LEDs on | 379 lm | ||
Light output blue | 36 lm | ||
Light output green | 228 lm | ||
Light output red | 36 lm | ||
Light output Mint | 209 lm | ||
Light output Amber | 193 lm | ||
Lux @ 2m | 30 lx | ||
Lux @ 5m | 5 lx | ||
Lux @ 8m | 2 lx | ||
Lux @ 10m | 1 lx | ||
Initial field of view (spot angle) | 163° | ||
Input voltage,absolute max. Rating | 90 - 264VAC / 47-63HZ | ||
Input voltage,nominal | 100V - 240VAC 50/60Hz | ||
Max inrush current 240V AC | 30A | ||
Total power | 54 W | ||
Max power consumption | 53 W | ||
Constant power consumption | 40 W | ||
Standby power consumption | 0.3 W | ||
DMX channels | 2/HSV/5/10/12/20/40/45CH | ||
Protocol | USITT DMX512/CRMX/WI DMX | ||
Color options | Black-RAL 9004/White | ||
IP class | IP65 | ||
Material | Aluminium,PC | ||
Net dimensions | 548*44*44mm | ||
Net weight | 0.64kg |
LED expected lifetime | 5H | ||
Lightsource | 32pcs * 0.5W R+32pcs * 0.5W G+32pcs * 0.5W B +32pcs * 0.5W M+32pcs * 0.5W A | ||
Battery working time @ full light | 5H | ||
Battery working time @ auto | 6.5H | ||
Battery charging time | 2.5H | ||
Color calibration | 0-255 | ||
Dimming curve | Linear/Square Law 1/Square Law 2/Square Law 3 | ||
Dimming | 0-255% | ||
LED panel | 32*0.5W R+32*0.5W G+32*0.5W B+32*0.5W M+32*0.5W A | ||
Strobe | 0-20Hz adjustable | ||
Tilt locking system | NO | ||
Segment control | 8 segments | ||
Screen Type | LCD | ||
Efficacy | 9 lm/W | ||
Light output all LEDs on | 379 lm | ||
Light output blue | 36 lm | ||
Light output green | 228 lm | ||
Light output red | 36 lm | ||
Light output Mint | 209 lm | ||
Light output Amber | 193 lm | ||
Lux @ 2m | 30 lx | ||
Lux @ 5m | 5 lx | ||
Lux @ 8m | 2 lx | ||
Lux @ 10m | 1 lx | ||
Initial field of view (spot angle) | 163° | ||
Input voltage,absolute max. Rating | 90 - 264VAC / 47-63HZ | ||
Input voltage,nominal | 100V - 240VAC 50/60Hz | ||
Max inrush current 240V AC | 30A | ||
Total power | 54 W | ||
Max power consumption | 53 W | ||
Constant power consumption | 40 W | ||
Standby power consumption | 0.3 W | ||
DMX channels | 2/HSV/5/10/12/20/40/45CH | ||
Protocol | USITT DMX512/CRMX/WI DMX | ||
Color options | Black-RAL 9004/White | ||
IP class | IP65 | ||
Material | Aluminium,PC | ||
Net dimensions | 548*44*44mm | ||
Net weight | 0.64kg |
ACCESSORIES
ACCESSORIES
Power cord
European double head
1.5m*0.75mm
ACCESSORIES
adapter
AC:110V-240V
Power: 100W
ACCESSORIES/CONTROLLERS
2.4G controller
There is a controlled distance of
50 meters
ACCESSORIES
Magnetic clip
Indispensable installation of the firmware, a strong magnet behind the lamp to hold
ACCESSORIES
Two parallel connectors
Connect the tubes in parallel
ACCESSORIES
Double light vertical connector
Connect the lamps at an Angle
ACCESSORIES
Three way connector
Connect the lamp in three directions
ACCESSORIES
Four-way connector
Connect the lamp tubes in four directions
ACCESSORIES
Six way connector
Connect the lamp in six directions
ACCESSORIES
Hanging rings
Mounted on the lamp can be hung on the bracket
ACCESSORIES
Controller
Installed at the bottom of the lamp tube into a lamp rod
ACCESSORIES
Three way connector
Installed at the bottom of the lamp to stabilize the lamp
ACCESSORIES

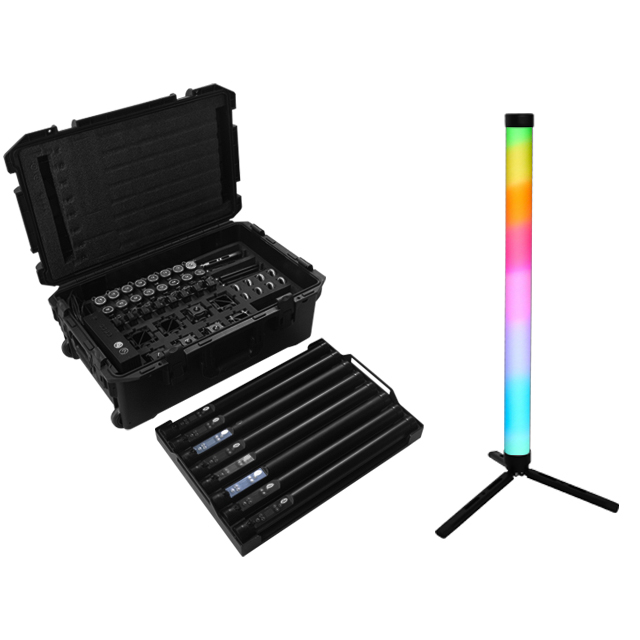

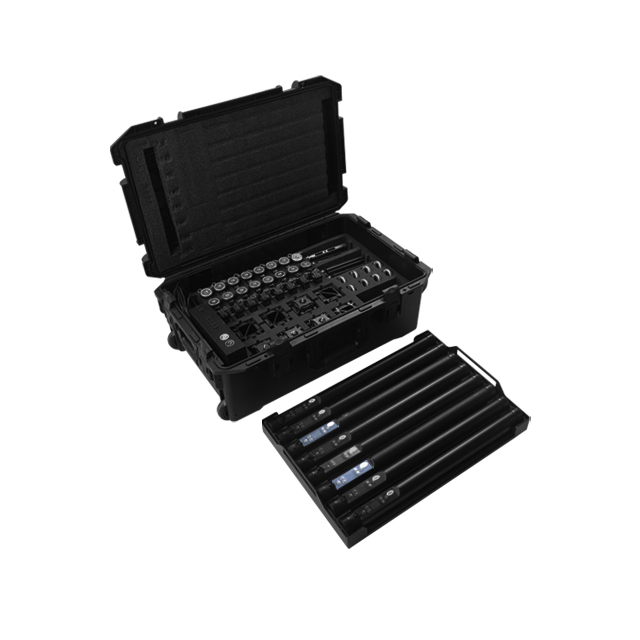

Flight Case
Mobile multifunctional aviation case can be charged
ACCESSORIES
Charging case
Protective case with dedicated space for most accessories that enables in-case charging
ACCESSORIES/CONTROLLERS
WIRELESS DMX TRX
Wireless transmission box
ACCESSORIES
AP03
Support at the bottom can be spliced multiple light rods
ACCESSORIES
Magnetic hanging plate
Use the lamp rod to secure to the support frame
ACCESSORIES
ACCESSORIES
Power cord
European double head
1.5m*0.75mm
ACCESSORIES
adapter
AC:110V-240V
Power: 100W
ACCESSORIES/CONTROLLERS
2.4G controller
There is a controlled distance of
50 meters
ACCESSORIES
Magnetic clip
Indispensable installation of the firmware, a strong magnet behind the lamp to hold
ACCESSORIES
Two parallel connectors
Connect the tubes in parallel
ACCESSORIES
Double light vertical connector
Connect the lamps at an Angle
ACCESSORIES
Three way connector
Connect the lamp in three directions
ACCESSORIES
Four-way connector
Connect the lamp tubes in four directions
ACCESSORIES
Six way connector
Connect the lamp in six directions
ACCESSORIES
Hanging rings
Mounted on the lamp can be hung on the bracket
ACCESSORIES
Controller
Installed at the bottom of the lamp tube into a lamp rod
ACCESSORIES
Three way connector
Installed at the bottom of the lamp to stabilize the lamp
ACCESSORIES
Flight Case
Mobile multifunctional aviation case can be charged
ACCESSORIES
Charging case
Protective case with dedicated space for most accessories that enables in-case charging
ACCESSORIES/CONTROLLERS
WIRELESS DMX TRX
Wireless transmission box
ACCESSORIES
AP03
Support at the bottom can be spliced multiple light rods
ACCESSORIES
Magnetic hanging plate
Use the lamp rod to secure to the support frame
Embrace the future of personalized lighting with our App Control Battery Pixel Light, designed to bring your creative visions to life effortlessly. This cutting-edge 160x0.5W Battery Pixel Light combines the power of advanced LED technology and user-friendly app control, offering unparalleled versatility in any setting.
Step into a realm of infinite hues with our RGB+Mint+Amber colors Battery Pixel Light. The inclusion of mint and amber alongside the classic RGB spectrum introduces a new dimension of color possibilities, enriching your ambiance with soothing pastels and warm, natural tones. Whether it's a serene evening glow or an energetic party vibe, our COLOR TUBE MINI Battery Pixel Light adapts flawlessly.
Wireless Freedom Meets Precision – DMX Technology
Say goodbye to cords and constraints with our Wireles DMX Battery Pixel Light. Equipped with state-of-the-art wireless technology, it ensures smooth, uninterrupted control from up to 30 meters away. Navigate through countless lighting modes, sequences, and intensities via the intuitive mobile app, all without the hassle of wired setups.
Elevate Every Space with Unmatched Flexibility
Crafted for both indoor and outdoor use, this pixel light features a durable, weather-resistant design that withstands the elements. Its compact size (160 individually controllable 0.5W pixels) makes it ideal for intricate installations, from architectural highlights to artistic stage designs. With easy mounting options and flexible tube shaping, customization has never been more accessible.
Seamless Integration & Energy Efficiency
Experience seamless integration with smart home systems and enjoy energy-efficient operation thanks to the low-power consumption design of each 0.5W pixel. This not only reduces your carbon footprint but also ensures prolonged battery life, perfect for extended events or everyday ambiance enhancement.
Customer-Centric Design
Our commitment to customer satisfaction goes beyond the product itself. Enjoy comprehensive user guides, quick-start tutorials, and a responsive customer support team available to assist you every step of the way. With a focus on ease of use and a satisfaction guarantee, we ensure your lighting journey is as smooth as the glow it produces.
Innovative, Eco-Friendly, and Ready to Illuminate Your World
Backed by rigorous quality testing and certifications, this App Control Wireless 160x0.5W RGB+Mint+Amber Battery Pixel Light is your ultimate solution for transforming spaces with light. Embrace the future of illumination today and create unforgettable moments illuminated by the precision and beauty of our advanced pixel lighting technology.
Embrace the future of personalized lighting with our App Control Battery Pixel Light, designed to bring your creative visions to life effortlessly. This cutting-edge 160x0.5W Battery Pixel Light combines the power of advanced LED technology and user-friendly app control, offering unparalleled versatility in any setting.
Step into a realm of infinite hues with our RGB+Mint+Amber colors Battery Pixel Light. The inclusion of mint and amber alongside the classic RGB spectrum introduces a new dimension of color possibilities, enriching your ambiance with soothing pastels and warm, natural tones. Whether it's a serene evening glow or an energetic party vibe, our COLOR TUBE MINI Battery Pixel Light adapts flawlessly.
Wireless Freedom Meets Precision – DMX Technology
Say goodbye to cords and constraints with our Wireles DMX Battery Pixel Light. Equipped with state-of-the-art wireless technology, it ensures smooth, uninterrupted control from up to 30 meters away. Navigate through countless lighting modes, sequences, and intensities via the intuitive mobile app, all without the hassle of wired setups.
Elevate Every Space with Unmatched Flexibility
Crafted for both indoor and outdoor use, this pixel light features a durable, weather-resistant design that withstands the elements. Its compact size (160 individually controllable 0.5W pixels) makes it ideal for intricate installations, from architectural highlights to artistic stage designs. With easy mounting options and flexible tube shaping, customization has never been more accessible.
Seamless Integration & Energy Efficiency
Experience seamless integration with smart home systems and enjoy energy-efficient operation thanks to the low-power consumption design of each 0.5W pixel. This not only reduces your carbon footprint but also ensures prolonged battery life, perfect for extended events or everyday ambiance enhancement.
Customer-Centric Design
Our commitment to customer satisfaction goes beyond the product itself. Enjoy comprehensive user guides, quick-start tutorials, and a responsive customer support team available to assist you every step of the way. With a focus on ease of use and a satisfaction guarantee, we ensure your lighting journey is as smooth as the glow it produces.
Innovative, Eco-Friendly, and Ready to Illuminate Your World
Backed by rigorous quality testing and certifications, this App Control Wireless 160x0.5W RGB+Mint+Amber Battery Pixel Light is your ultimate solution for transforming spaces with light. Embrace the future of illumination today and create unforgettable moments illuminated by the precision and beauty of our advanced pixel lighting technology.
